Overview
Thornton Engineering manufactured an Alkylation Unit Column for the production of high-octane fuel for an Australian-based refinery. The scope of work included:
- Vessel design and detailing, including third-party verification
- Statutory design registration
- Global procurement of raw materials
- Development of several weld procedures including exotics

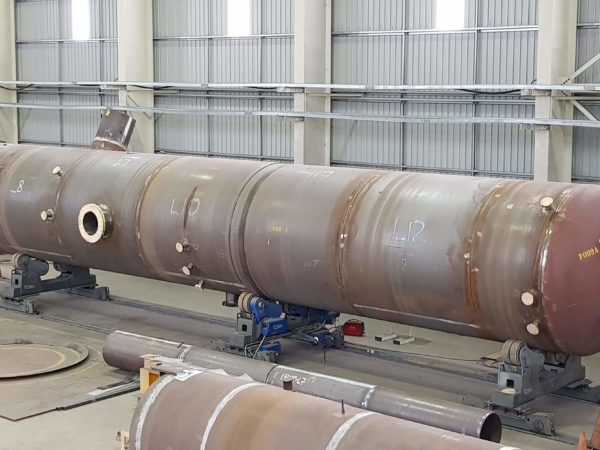

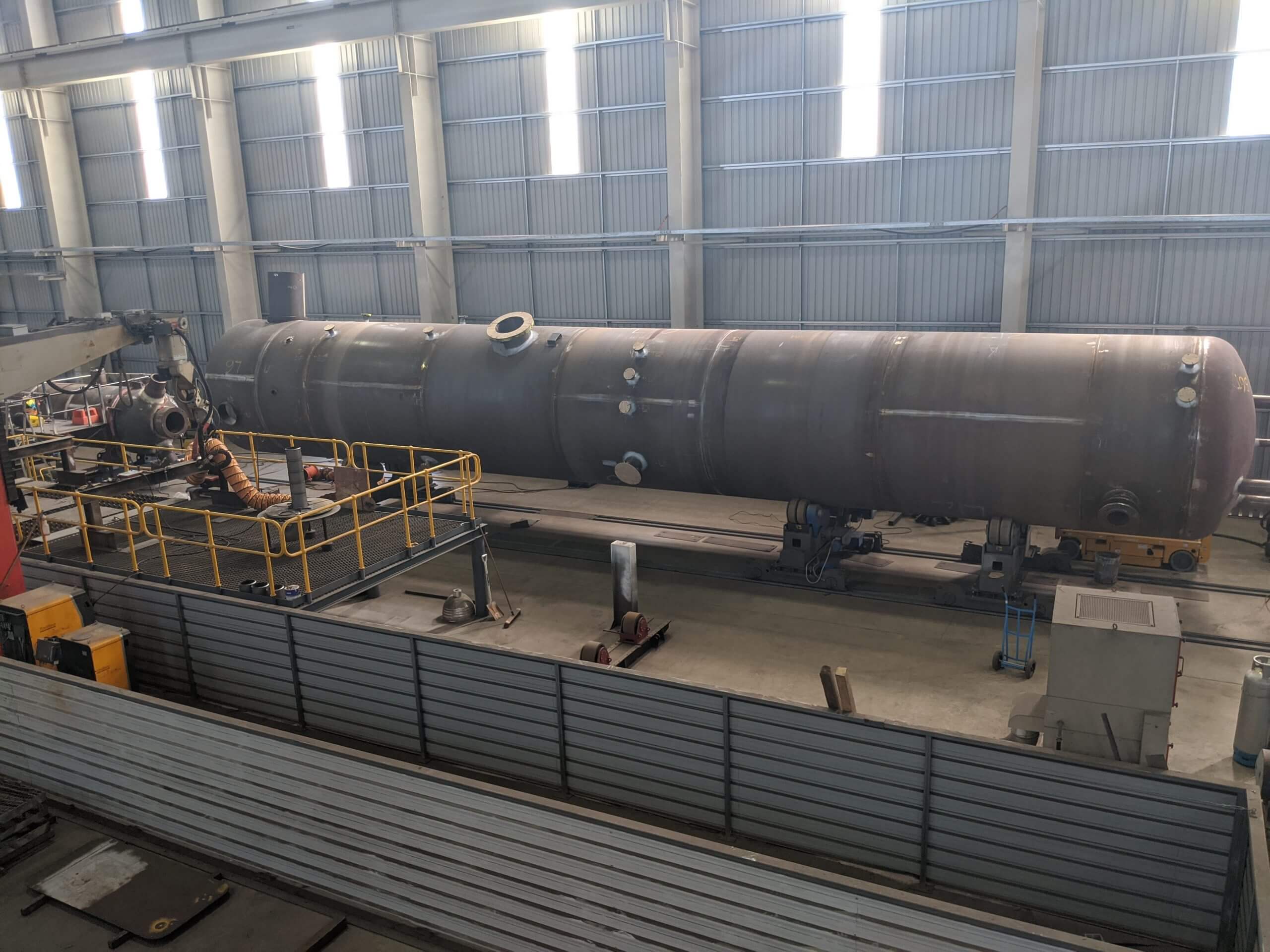

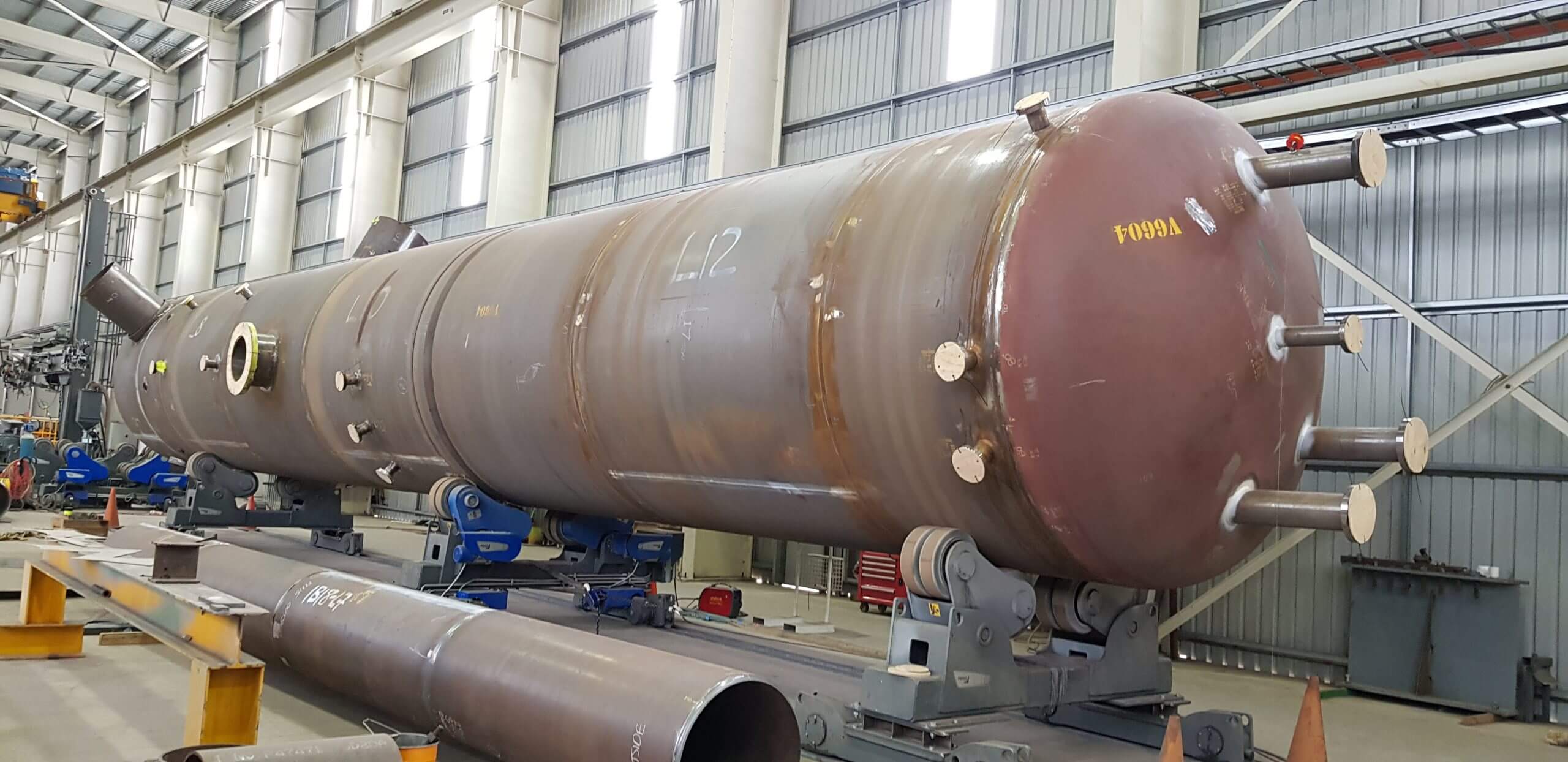

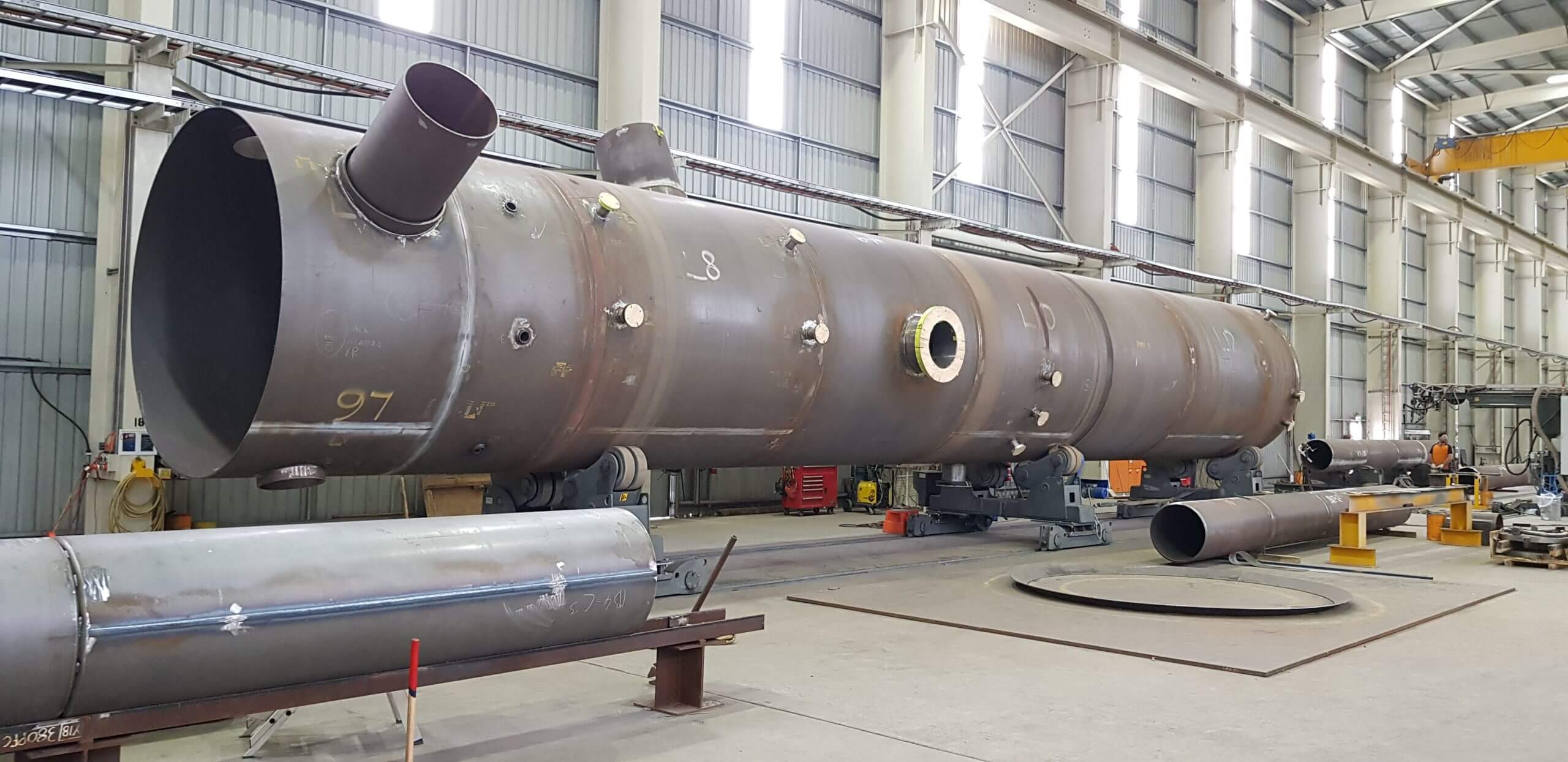

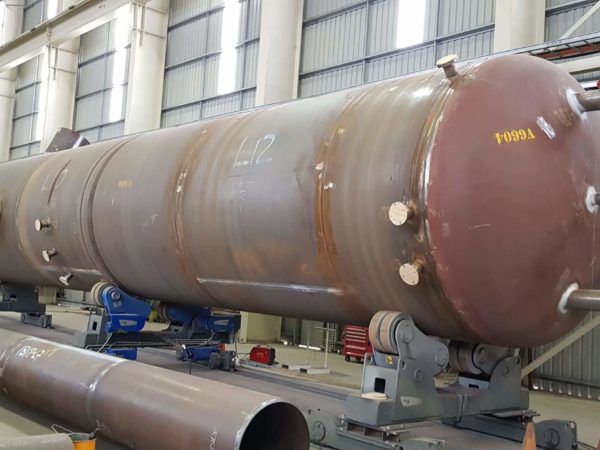

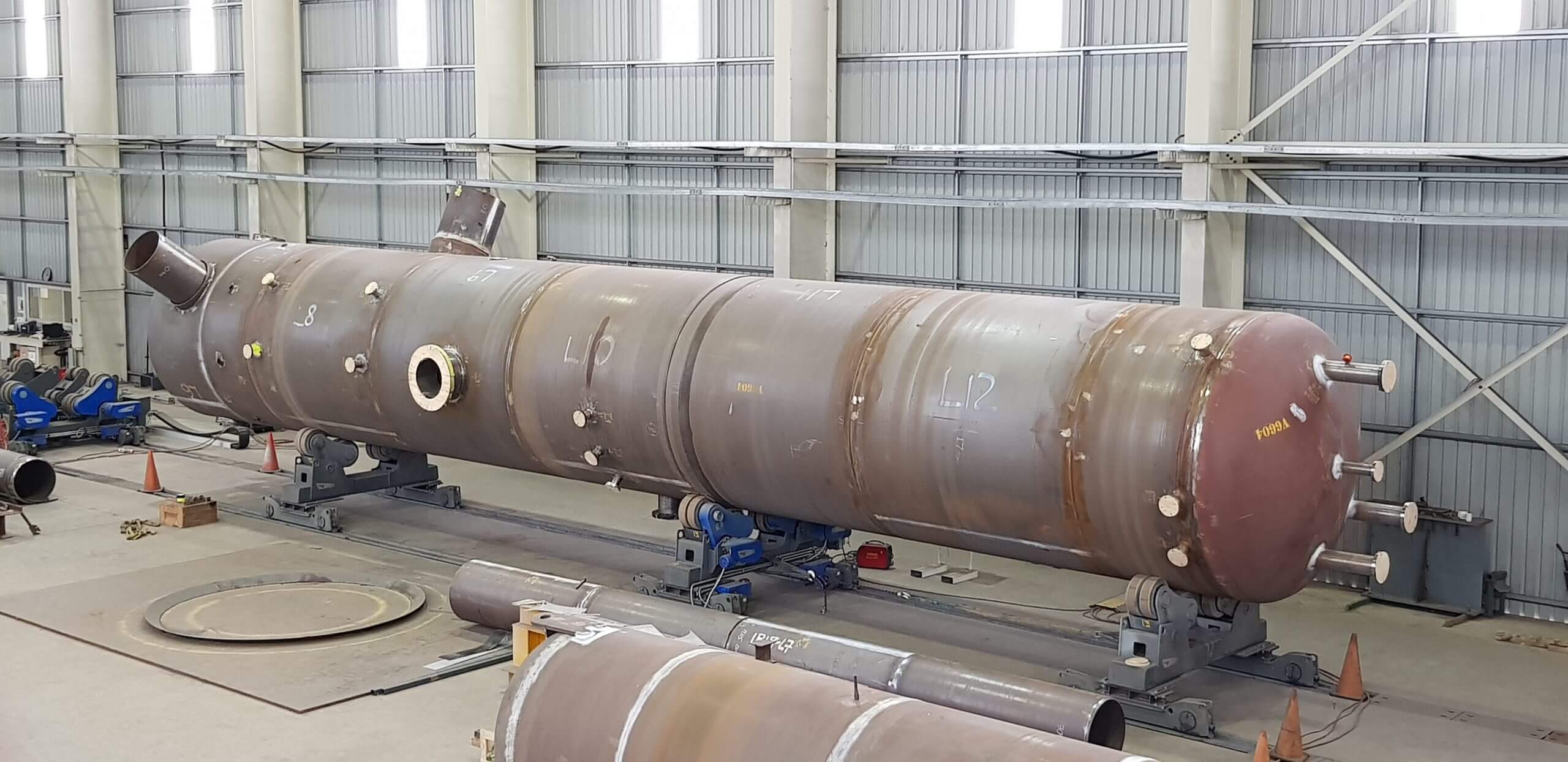

- Manufacture of vessel, platforms, ladders and pipe supports

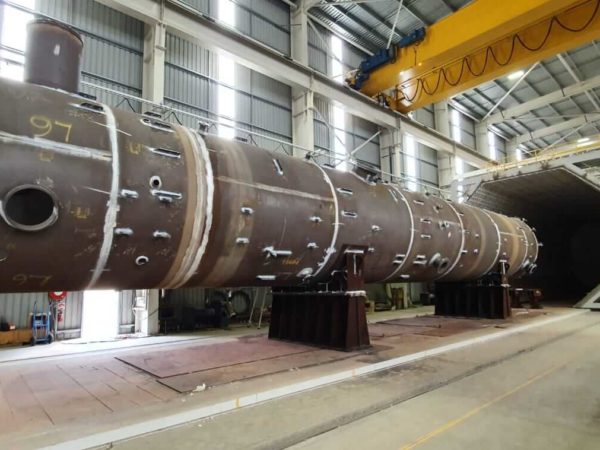

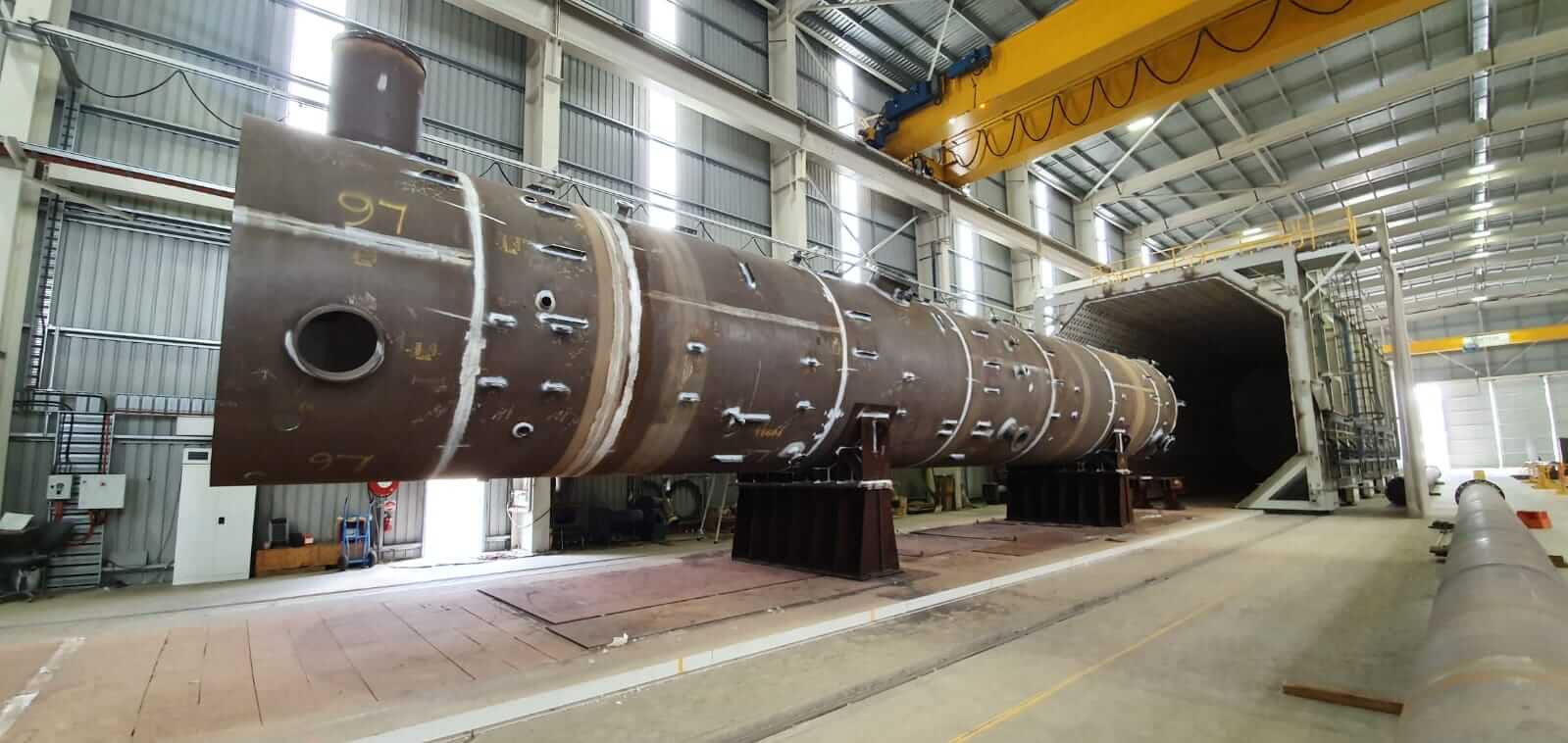

- Column Section Stress Relieving
- Testing of vessel – hydrostatic, proof load testing
- Surface treatment

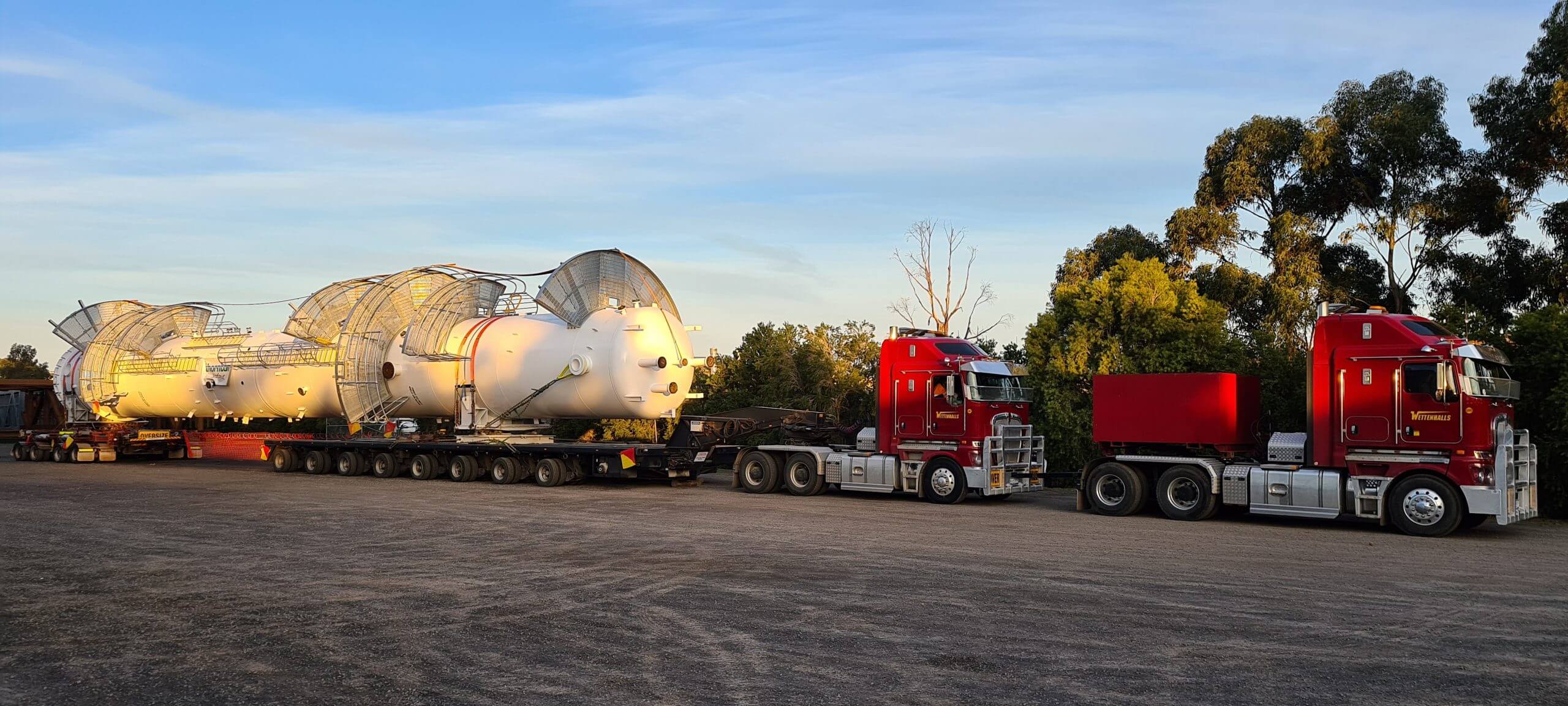

- Transport to site
Steel was sourced internationally from a Belgium mill due to the strict chemical restrictions and Hydrogen Induced Cracking (HIC) resistance.

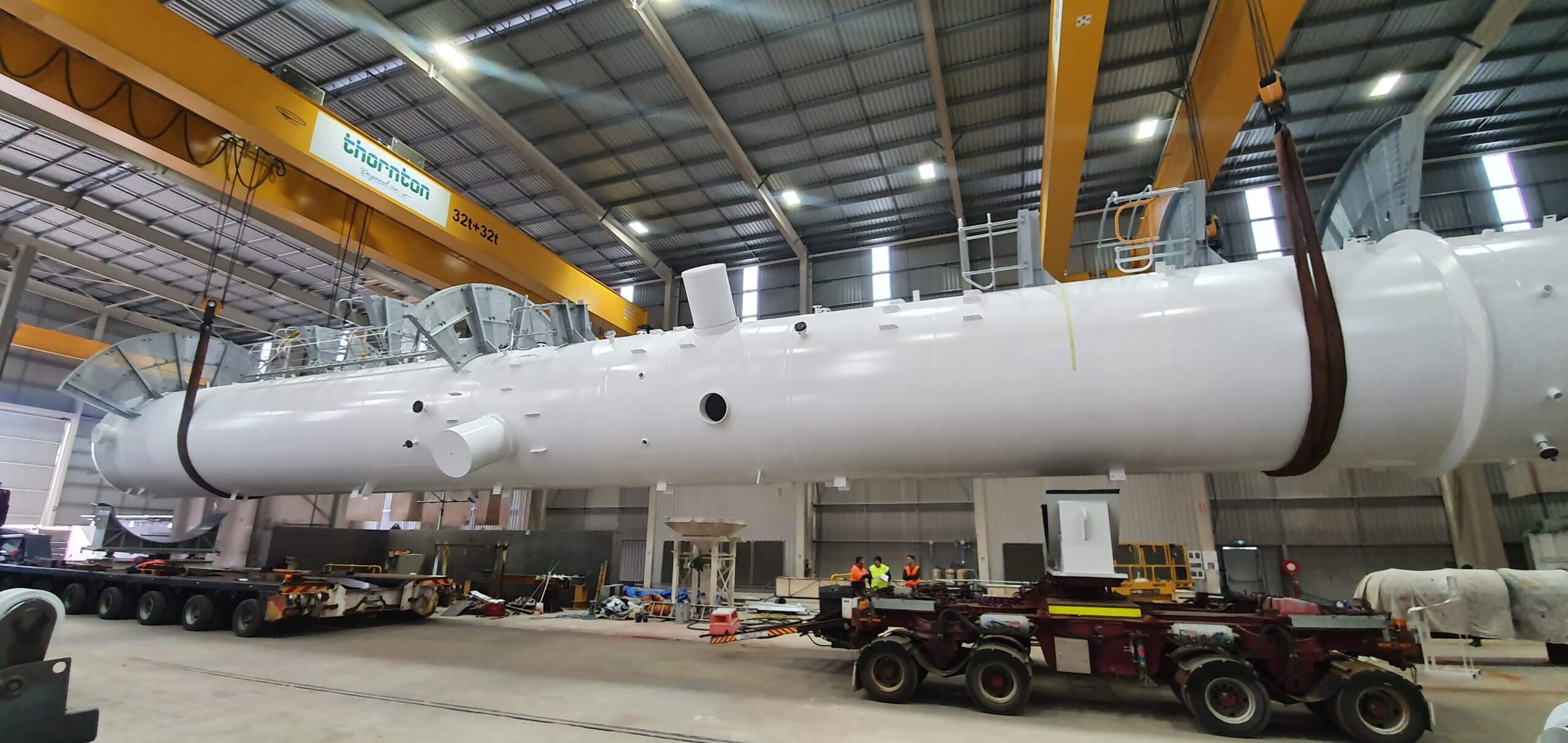

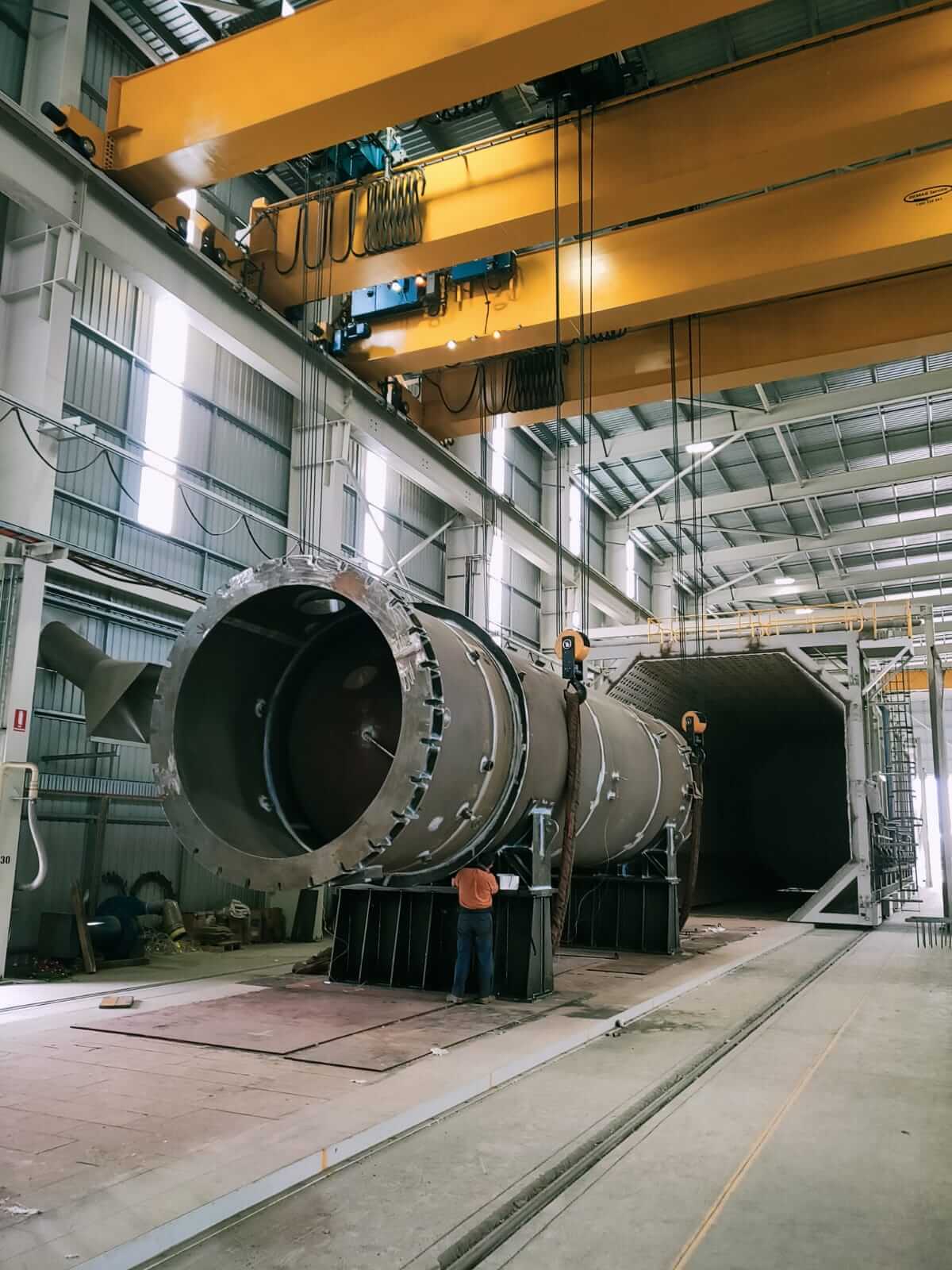

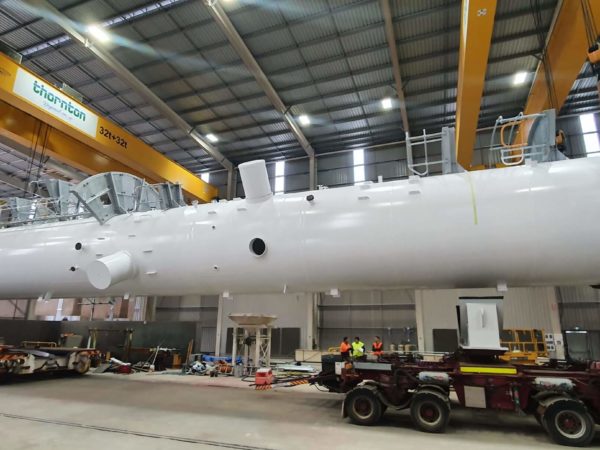

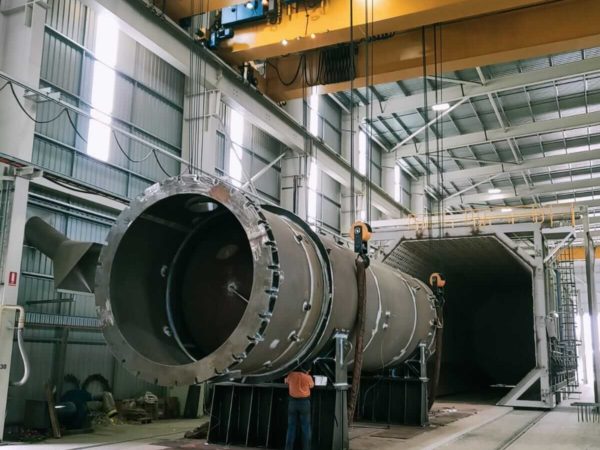

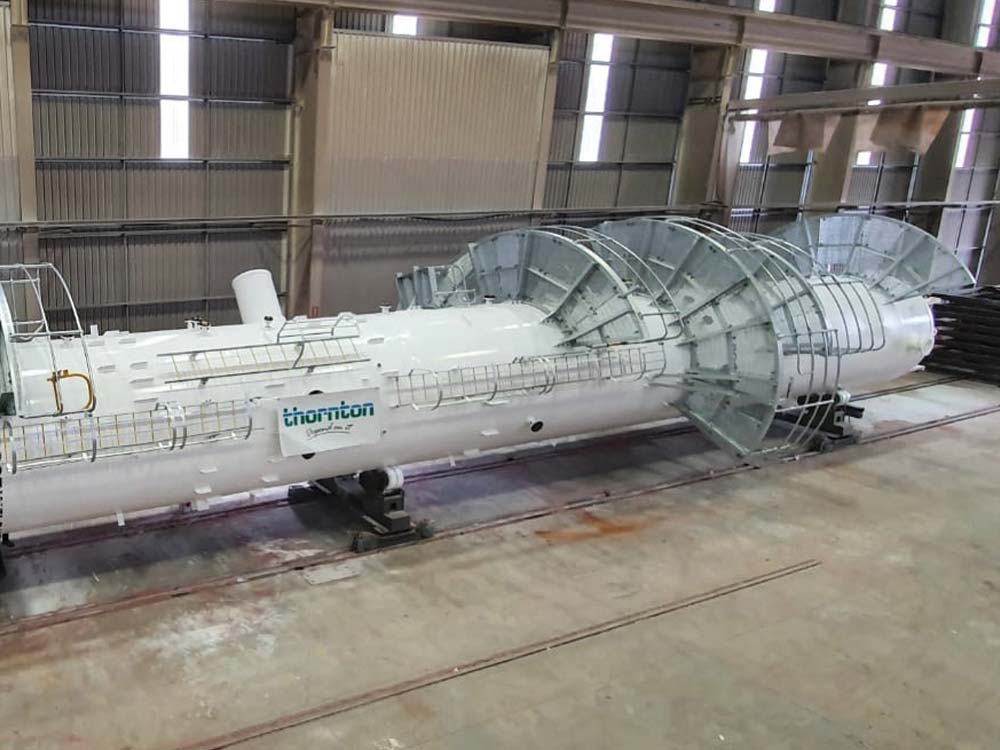

All fabrication for the project was performed in-house, giving Thornton Engineering greater project control with less reliance on sub-contractors and less risk on scheduled activities. This column was treated as two assemblies in our 25m Stress Relieving Oven, then hydrotested and painted in our 40m in-line paint shop.

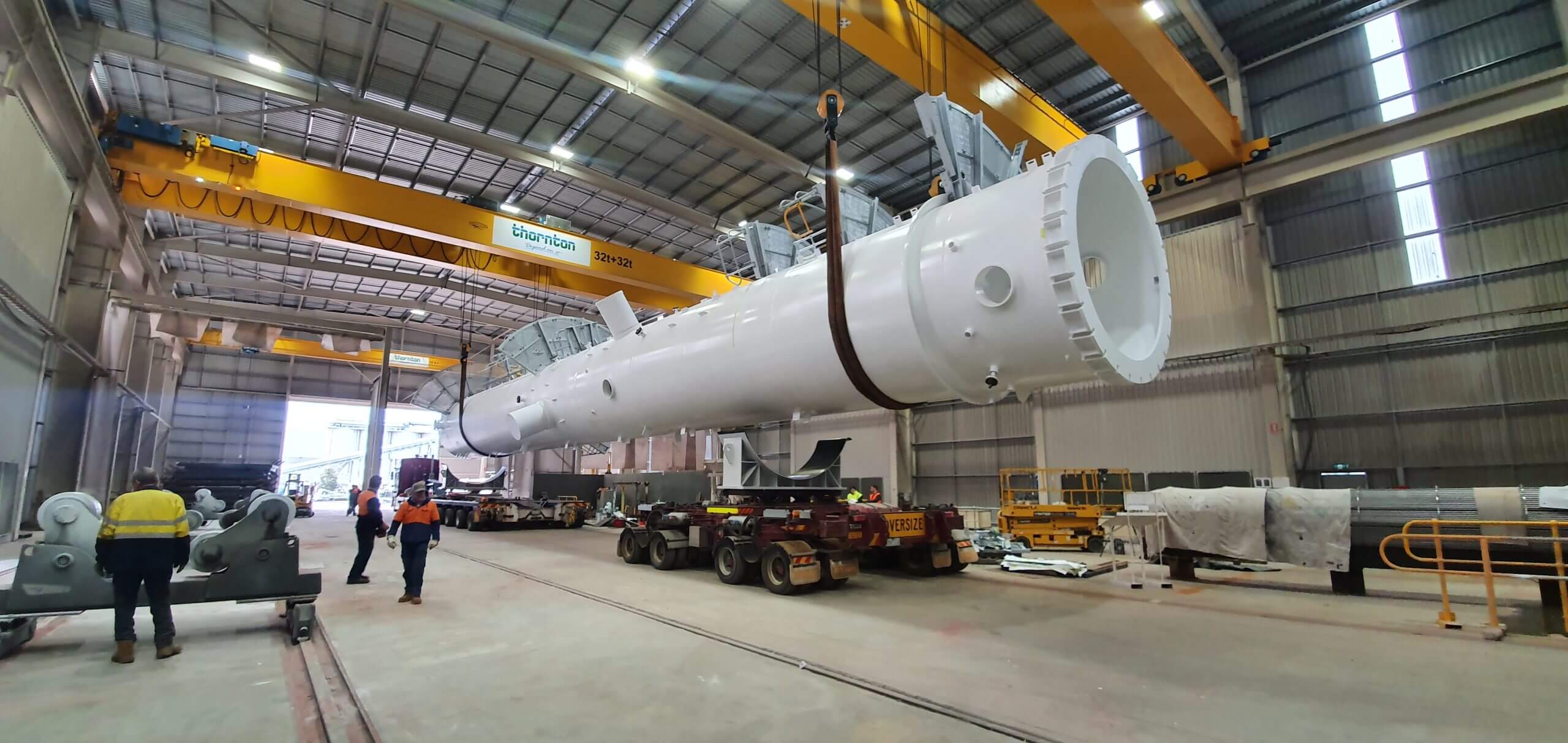

This column was successfully delivered on time to client specifications for a planned shutdown.
Specification
| Year | 2020 |
| Dimensions | 32m (H) x 3.0m OD |
| Design Pressure | 1035 / -80 kPa(g) |
| Material | A516-65N (HIC+S54) |
| Classification | Class 1B |
| Thickness | 30mm |
| Weight | 110T |
