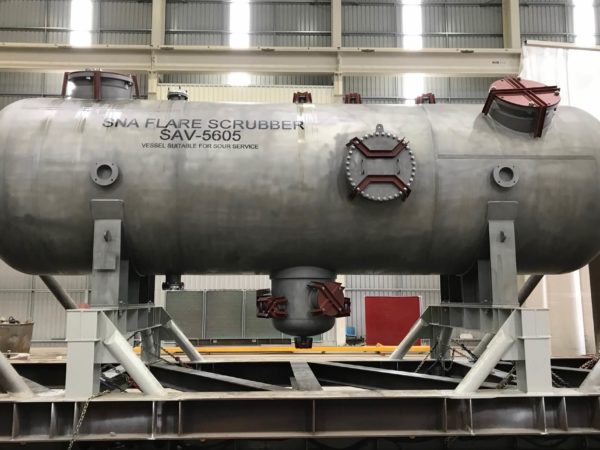

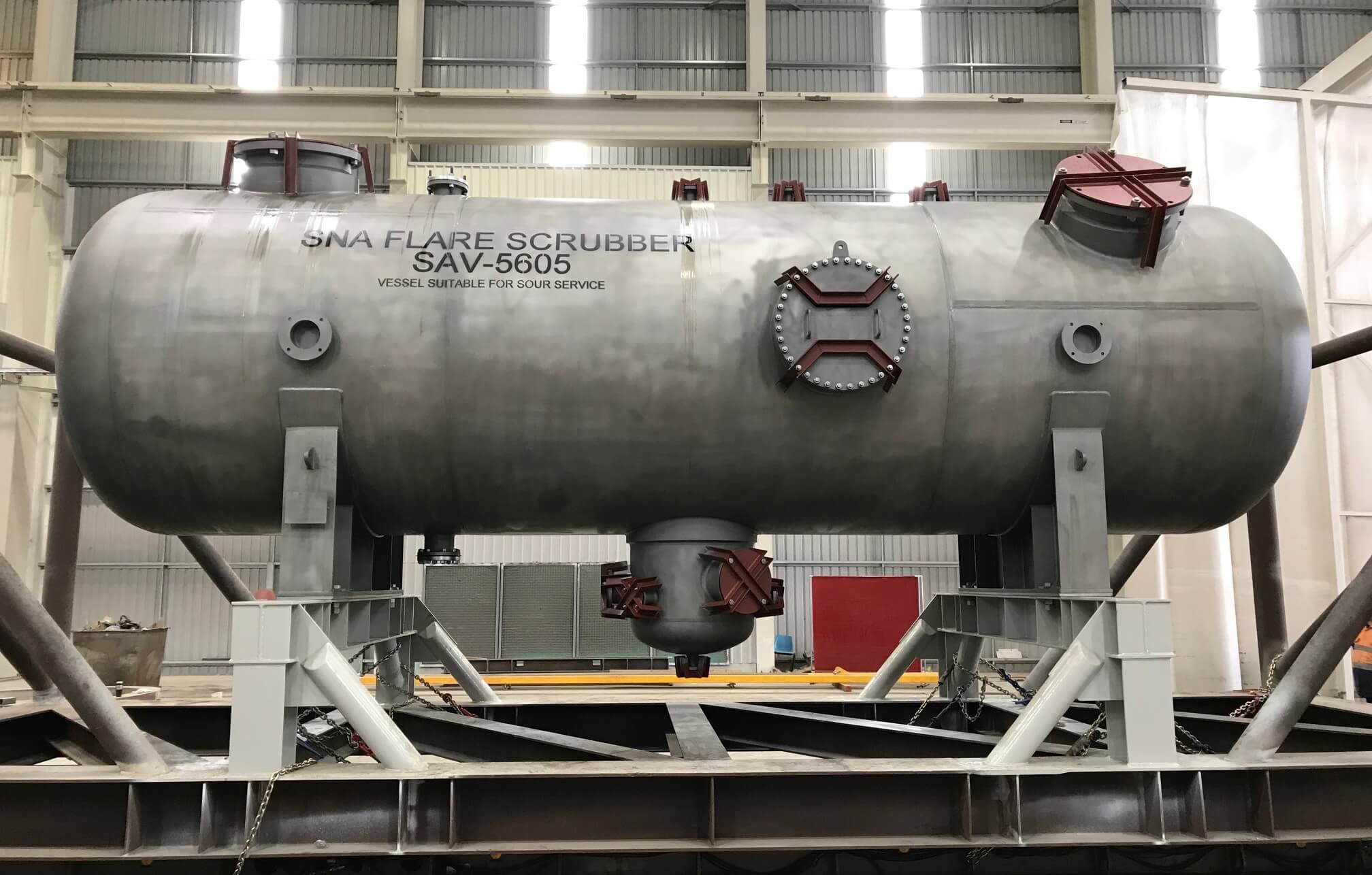

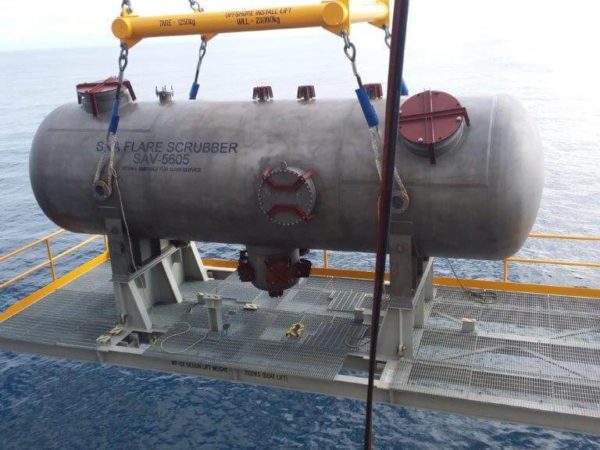

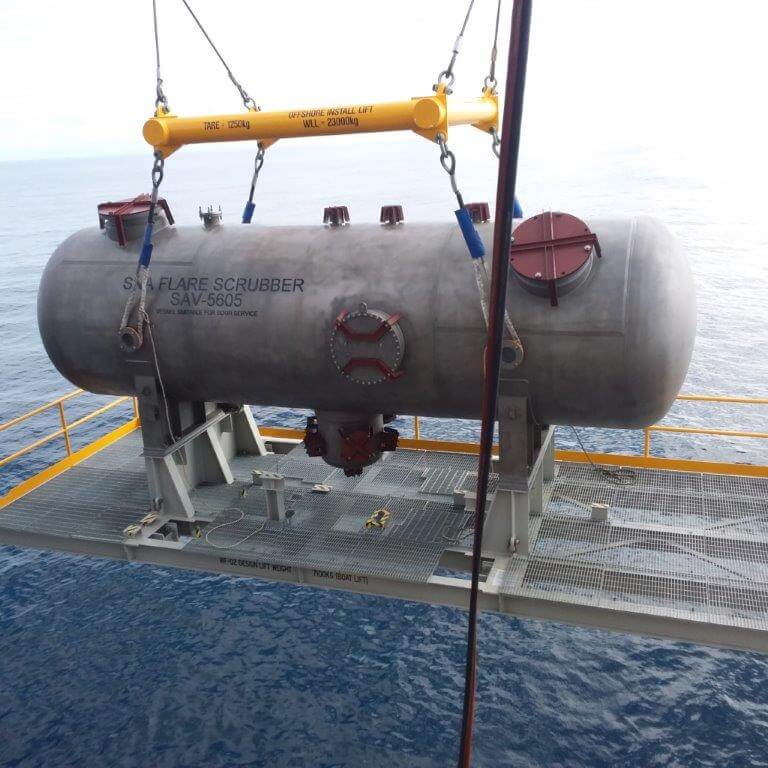

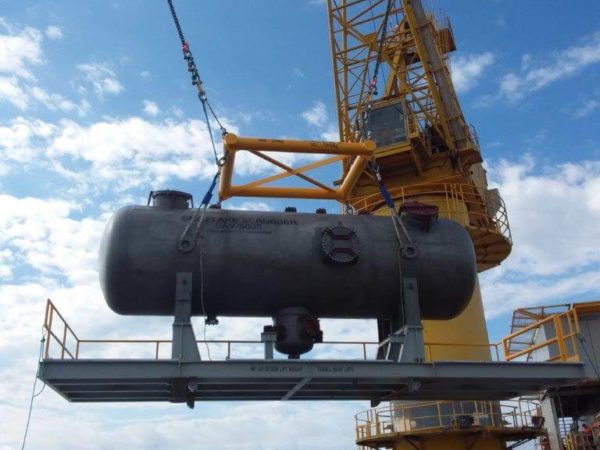

Thornton Engineering manufactured a Flare Scrubber for an Australian oil and gas producer. Used on an offshore oil platform, our scope of work included:

  • Vessel design and detailing, including third-party verification
  • Statutory design registration
  • Global procurement of raw materials
  • Development of several weld procedures, including exotics
  • Manufacture of vessel
  • Testing of vessel – hydrostatic, proof load testing
  • Surface treatment and decontamination

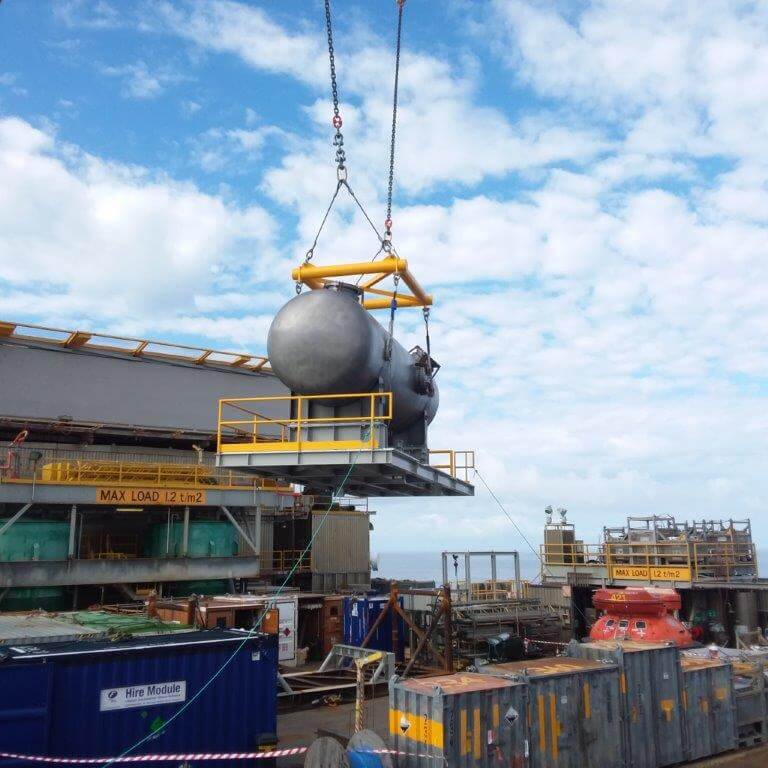

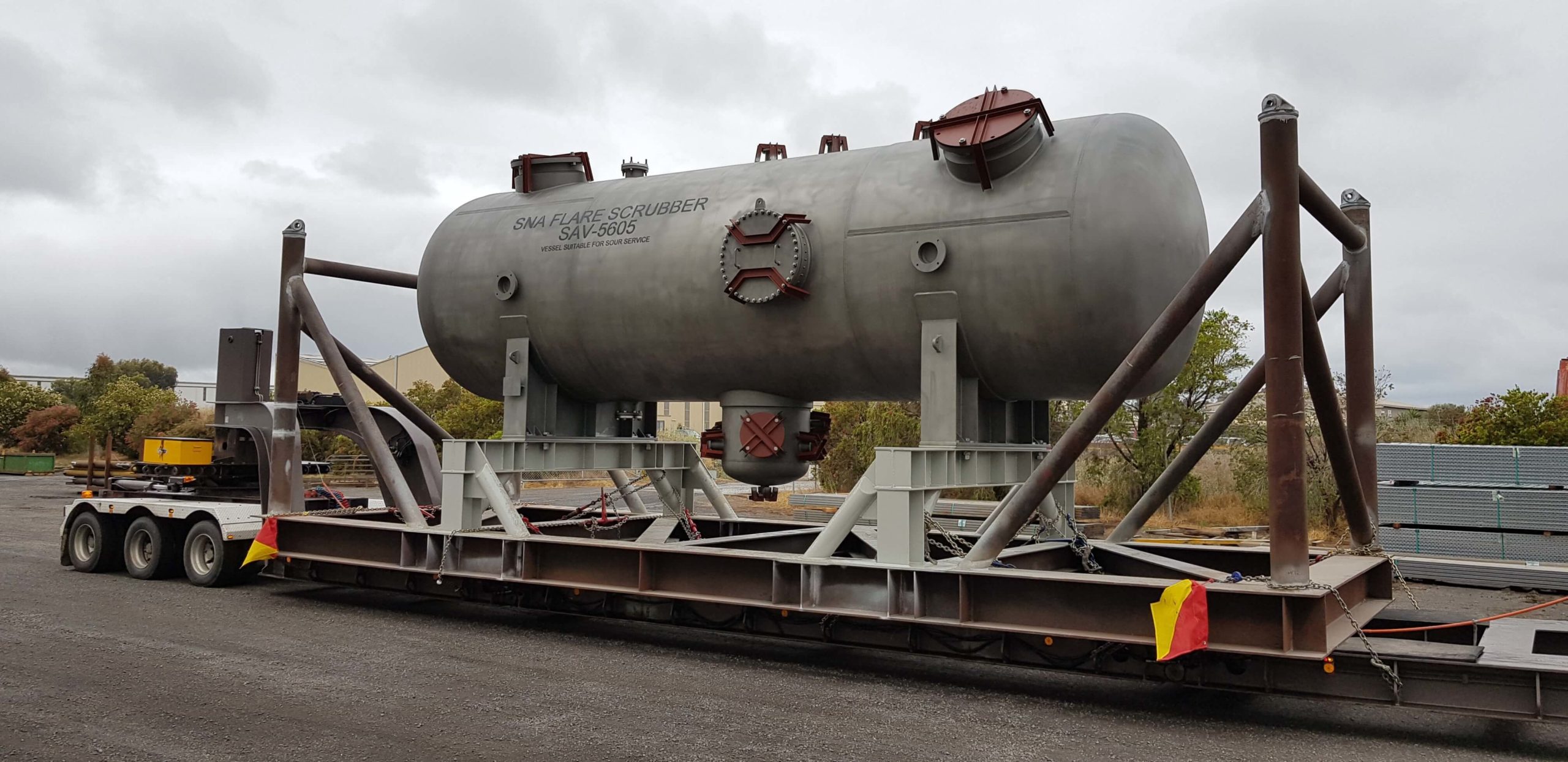

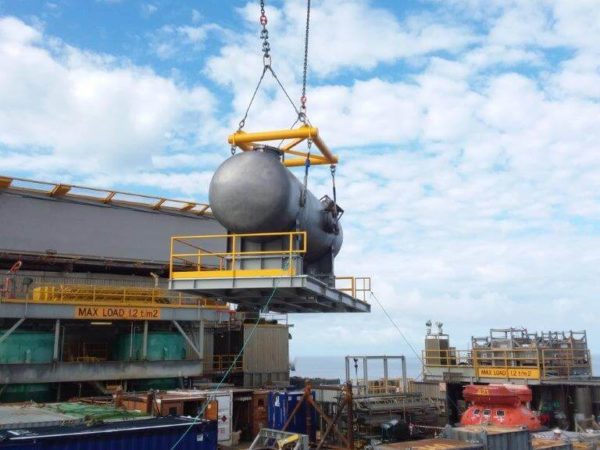

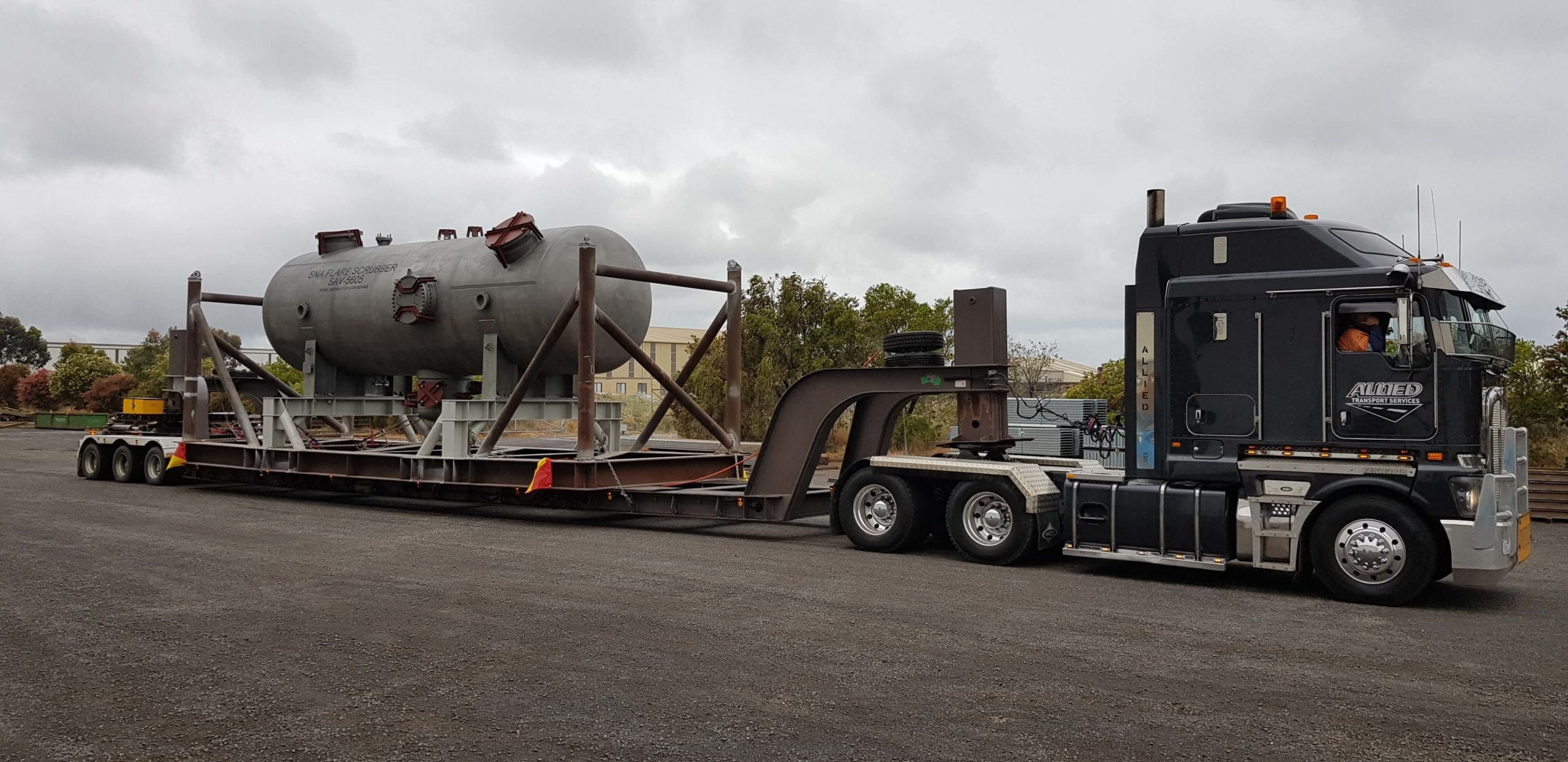

  • Transportation to site
  • Steel was sourced internationally from a mill in France due to the strict chemical restrictions.

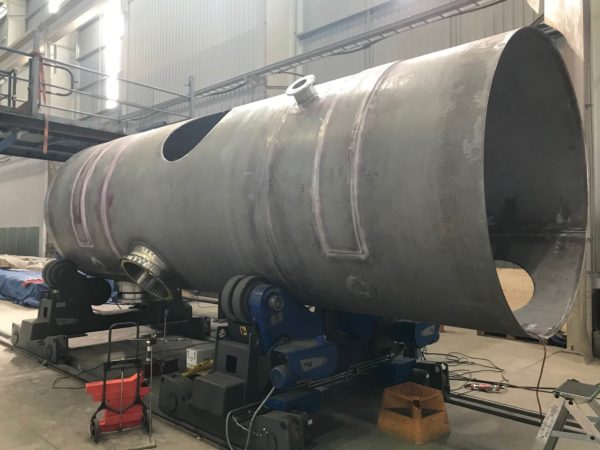

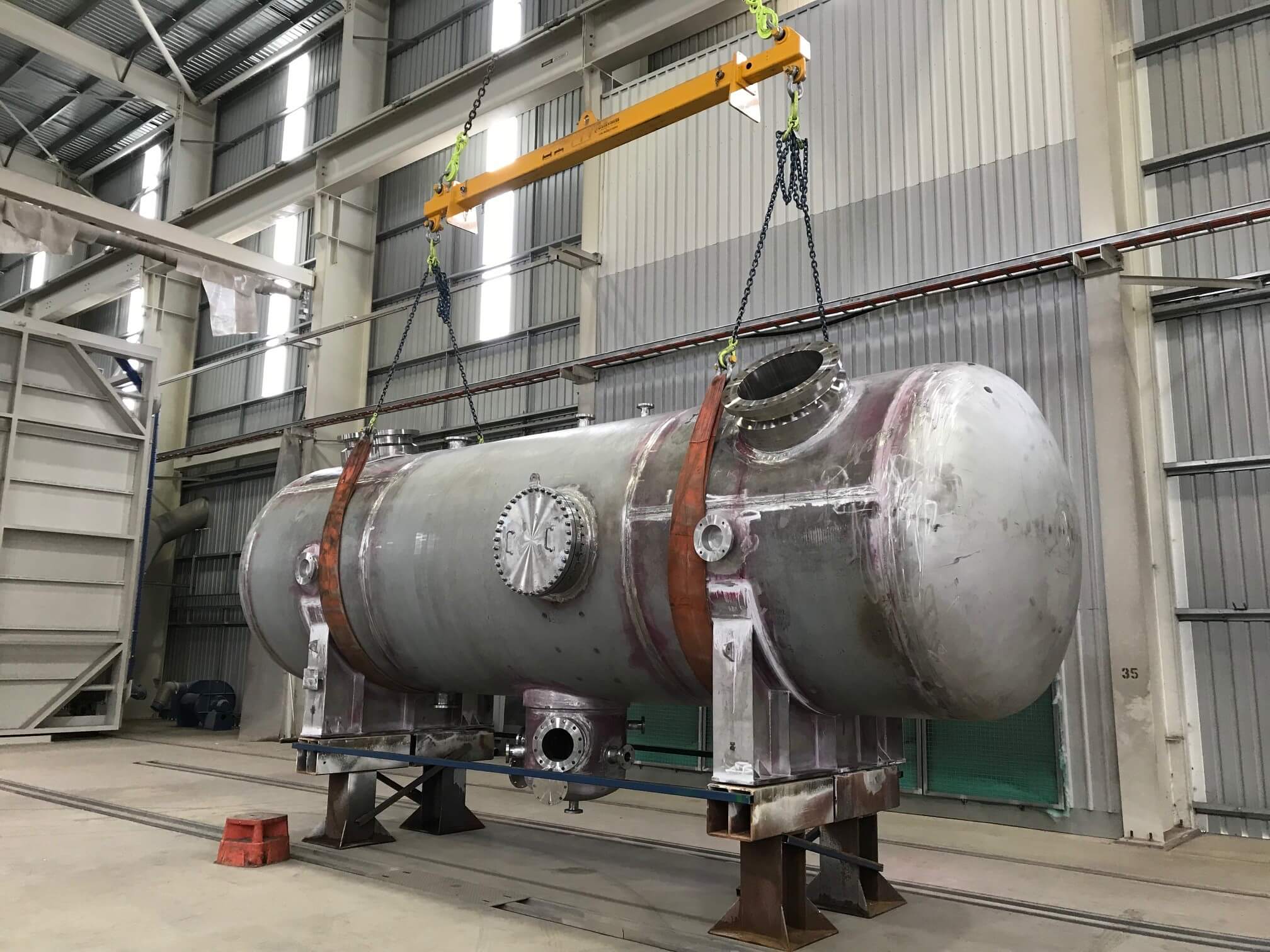

All fabrication for the project was performed in-house, giving Thornton Engineering greater project control with less reliance on sub-contractors and less risk on scheduled activities. This included rolling, all welding activities, hydrotesting, proof load testing, surface preparation and decontamination testing in our 40m in-line paint shop.


ClientEsso Australia Pty Ltd
Dimensions6900mm T-T x 2304mm OD
Design Pressure1035 / -80 kPa(g)
Material (6Mo) ASTM-A240-N08367 (Plate), ASTM-A182-F44 (Forgings)
ClassificationClass 1
