Overview

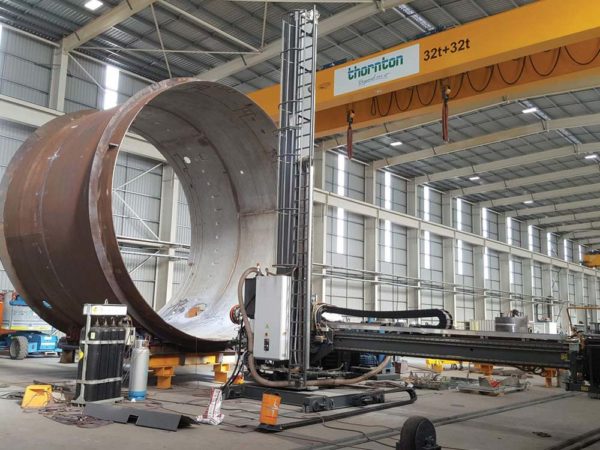

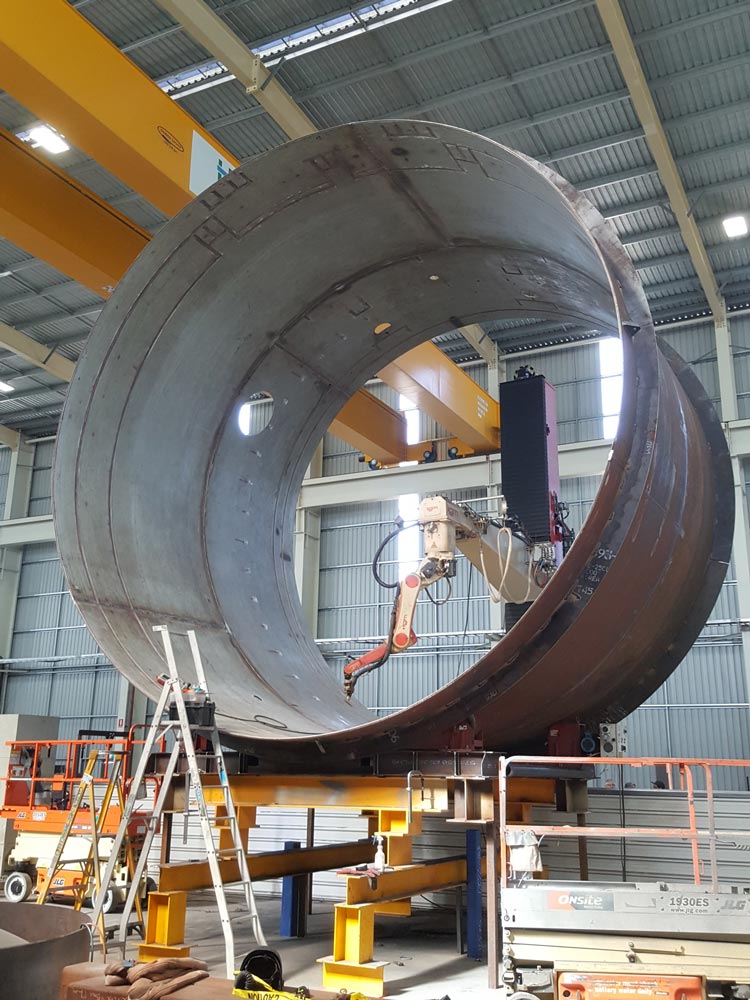

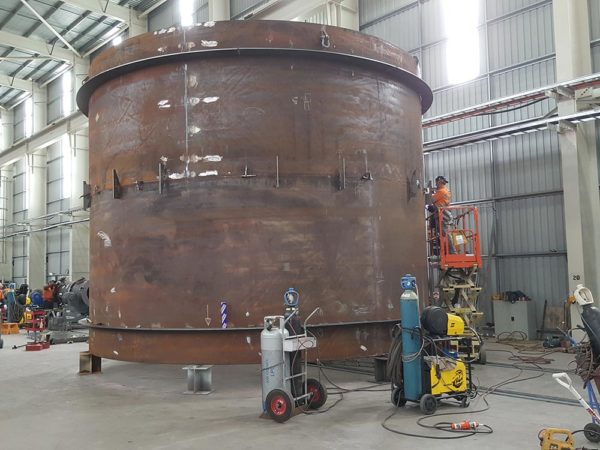

Thornton Engineering fabricated a high vacuum column section for a valued client. The section was fabricated with a 317L stainless steel weld overlay and included the following scope of work:

  • Project detailing
  • Material supply

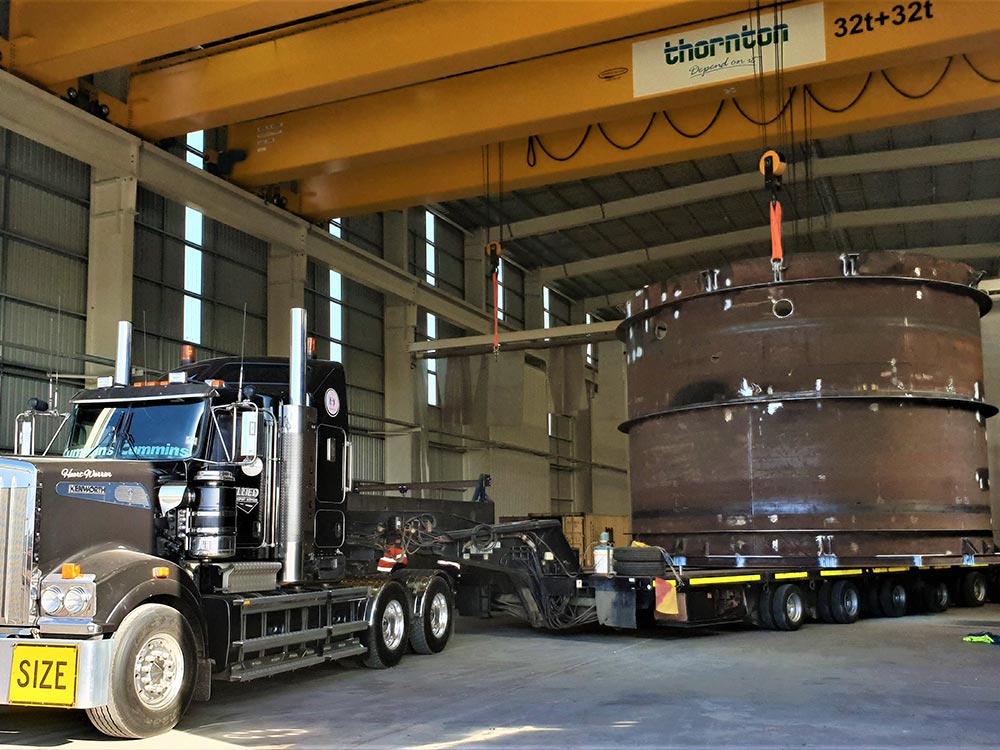

  • Fabrication, including transportation frame
  • Non-destructive testing (NDT)

Specification

Year2018
LocationMarsden Point, New Zealand
Dimensions5.5m x 7m OD
ClassificationClass 1
MaterialA204 Grade B + 317L SS Cladding
Thickness20mm + 4mm
Weight27T
