Overview

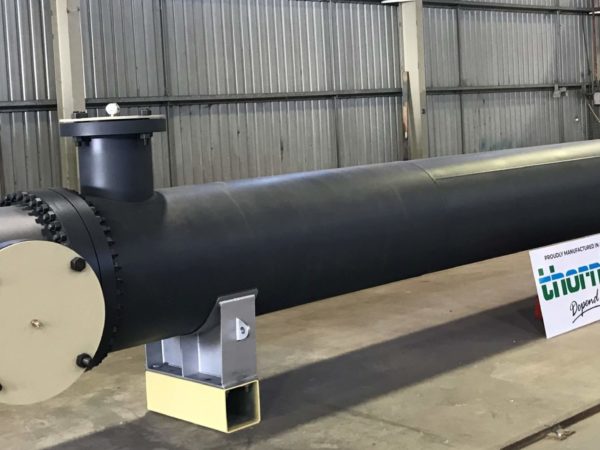

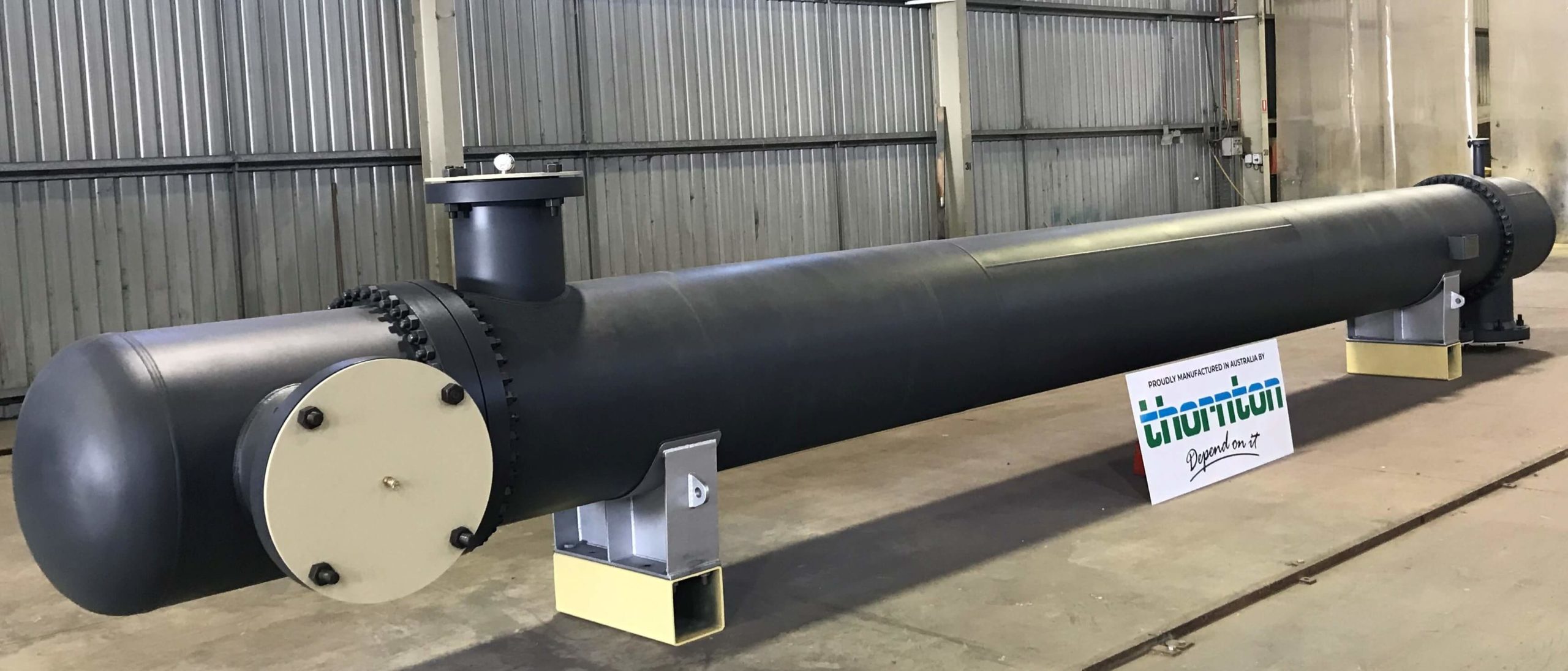

Thornton Engineering helped a valued client re-design and manufacture a shell and tube heat exchanger at an ammonia plant. The modified heat exchanger replaced a second-hand exchanger that was originally designed for a very different application.

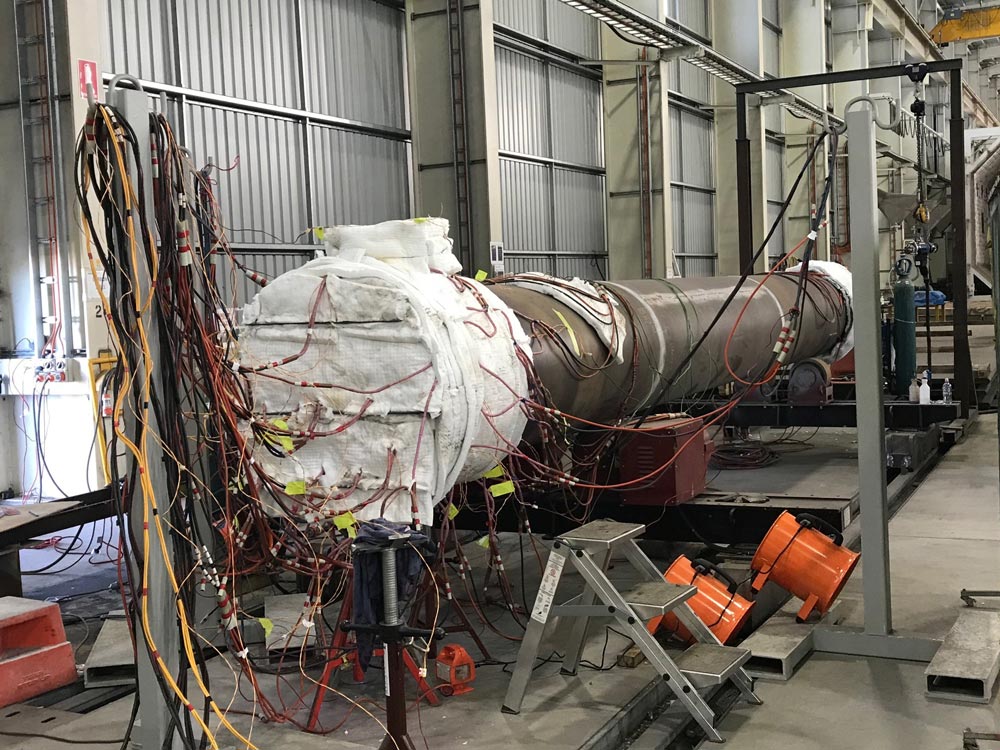

The heat exchanger featured modifications to provide greater reliability.  The scope of work included thermal and mechanical design, material supply, fabrication, orbital tube welding, local PWHT, hydrostatic & acoustic testing, surface treatment, preservation and transportation to site.

The replacement heat exchanger included the following material changes to improve reliability:

  1. Shell Side – Carbon Steel
  2. Tube Side – 1-1/4Cr, 1/2Mo

Design registration was also undertaken with statutory state authorities.

Specification

Diameter (mm)850mm
Design Pressure:5100kPa/FV(Shell); 4000kPa(Tube)
MaterialA213-T11 (Tube), A516-70 (Shell)
Number of Tubes527

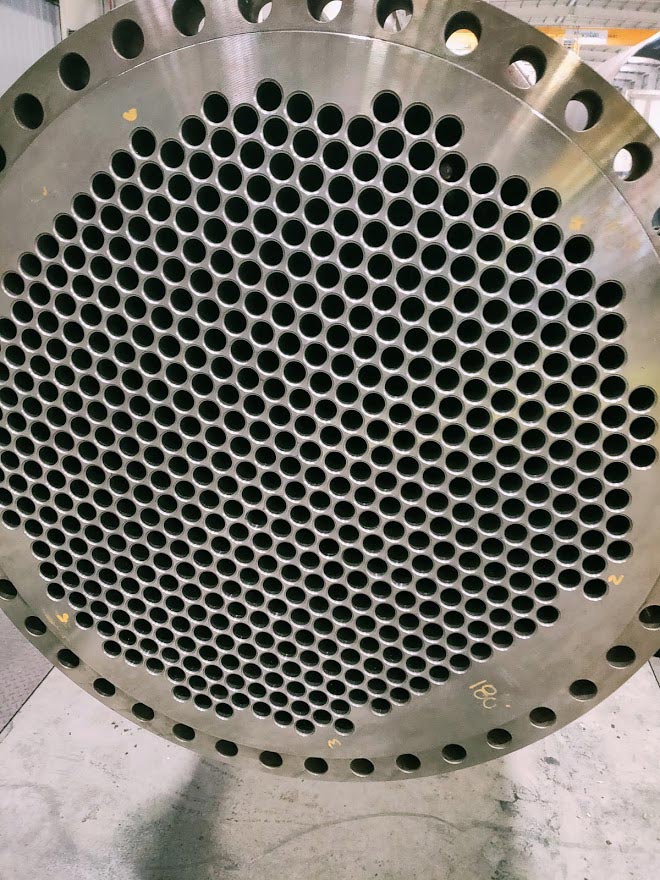

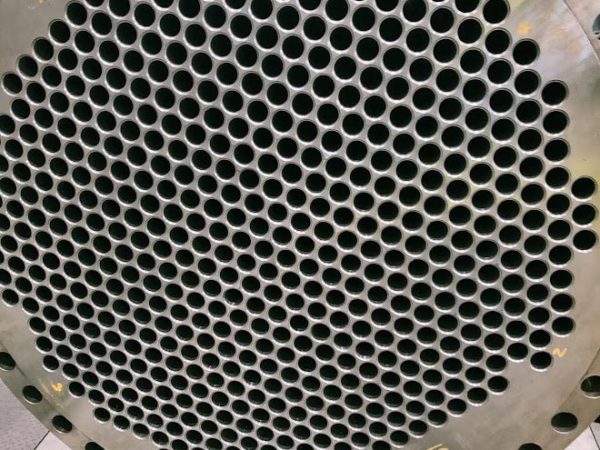

Tubesheet Thickness113mm
Tube to Tubesheet Joint:2 Pass Strength Welded + Expansion
Weight14 T

Photo Gallery

Downloads & Media

Further Information

Craig Malt +61 (0) 3 5274 3180
