Overview
This Sulphur Burner project was completed for a highly regarded client of ours. This equipment will be used in a Sulphuric Acid Plant to burn molten sulphur in the presence of gas prior to cooling.
Our scope for this project consisted of:
- Design; including FEA
- Detailing
- Procurement

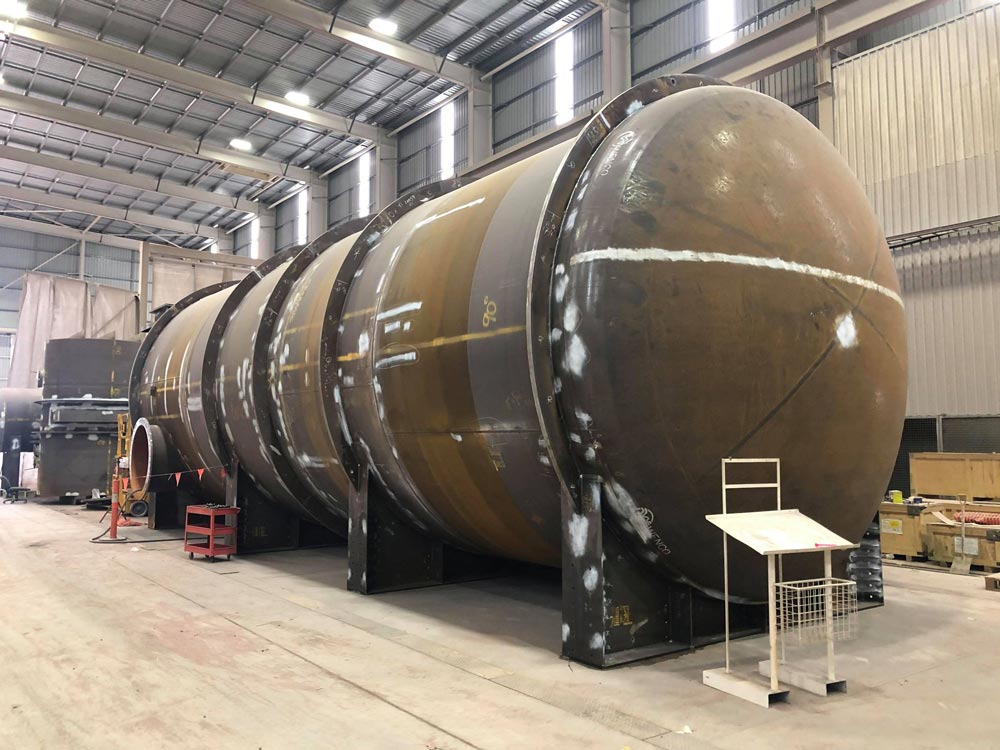

- Fabrication
- Non-Destructive Testing
- Hydrostatic Testing
- Surface Preparation

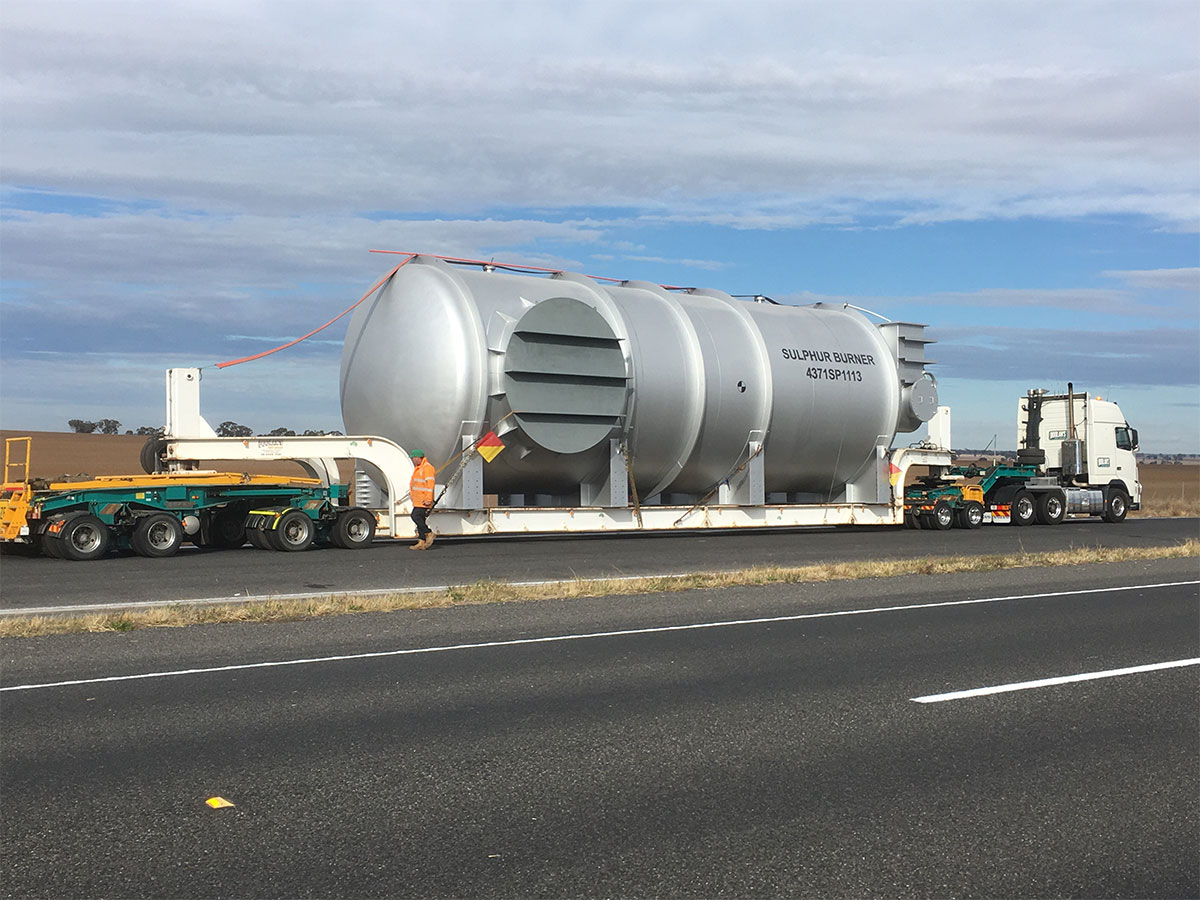

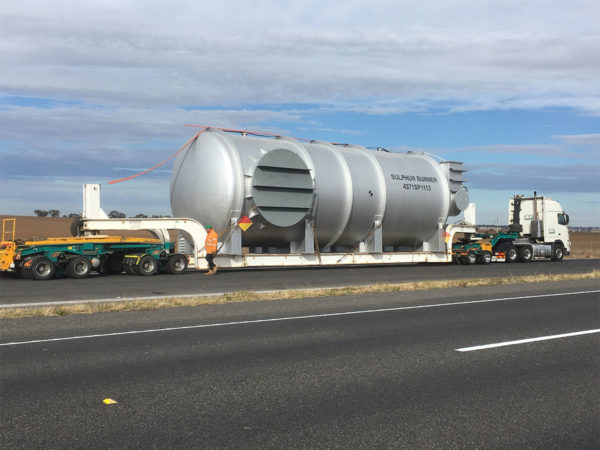

- Packaging for Transport

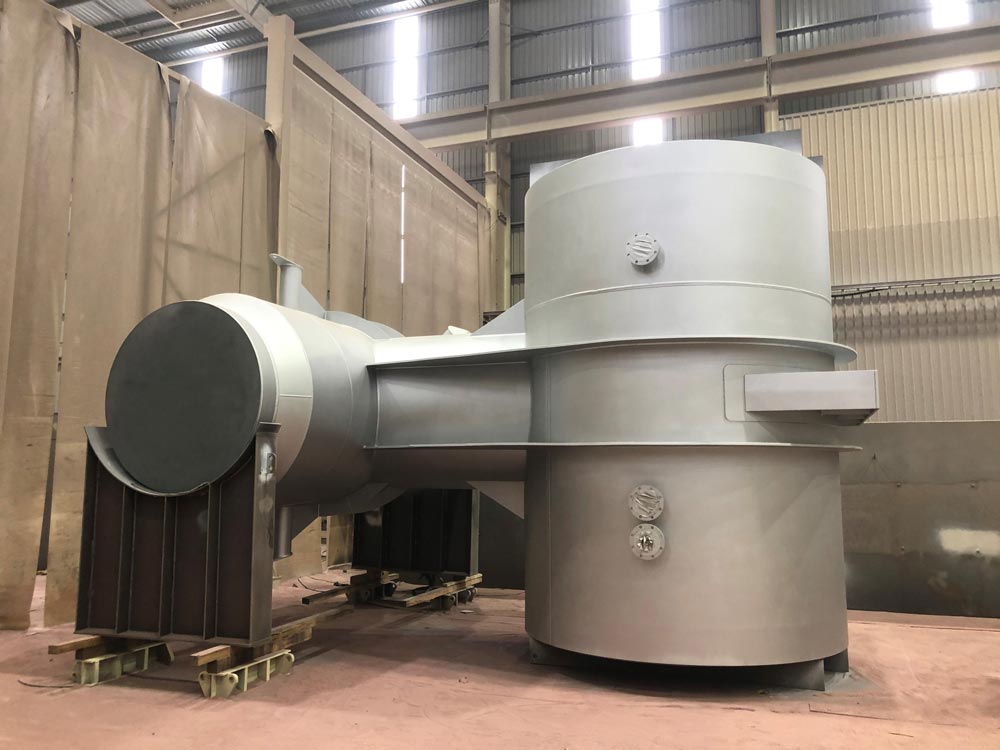

We also completed the Mixing Tee connecting to the Sulphur Burner for the next stage in the production process under the same scope of work. Third-party design verification was complete and statutory design registration was also undertaken.
Specification
| Year | 2021 |
| Dimensions | 4732mm (ø) x 12.9m T-T (L) |
| Design Pressure | 51.9kPa (max) / 0kPa (min) |
| Design Temp | 375 (max) / 15 (min) |
| Material | AS1548-PT460NR / A516-70 |
| Thickness | 12mm |
| Weight | 41.6 T |
